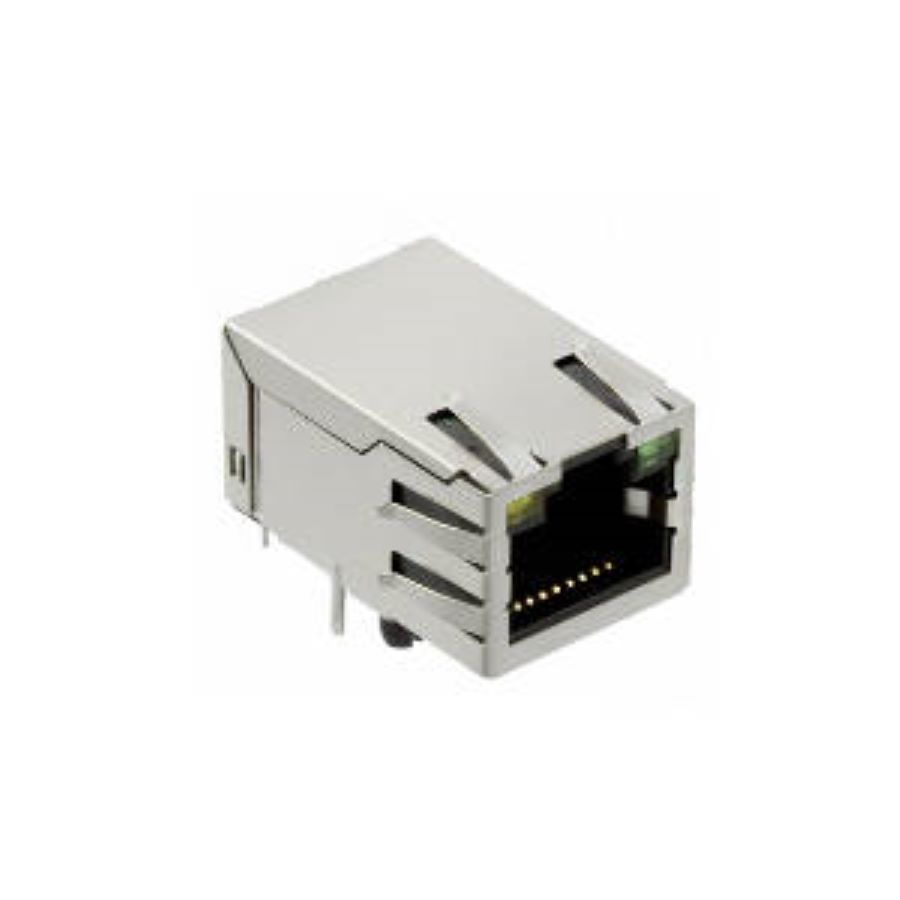

ARJC01-111002AR
Manufacturer:
Abracon Corporation
Mfr.Part #:
ARJC01-111002AR
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:8 mA
| Parameter | Value |
|---|---|
| Length | 25.3 mm |
| Width | 16.2 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.55 mm |
| Packaging | Tray |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 1.27 mm |
| Current Rating | 8 mA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Green, Yellow |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Inductance | 350 µH |
| Direction(Counting Sequence) | Up |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Number of Cores per Jack | 4 |
| Mounting Angle | Right Angle |
| Performance Category | |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 152
Distributors
pcbx
pcbxUnit Price$4.46786
Ext.Price$4.46786
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.46786 | $4.46786 |
| 10 | $3.64200 | $36.42000 |
| 25 | $3.46590 | $86.64750 |
| 50 | $3.29832 | $164.91600 |
| 100 | $3.05381 | $305.38100 |
| 300 | $2.87685 | $863.05500 |
| 500 | $2.71013 | $1355.06500 |
| 1000 | $2.53487 | $2534.87000 |
